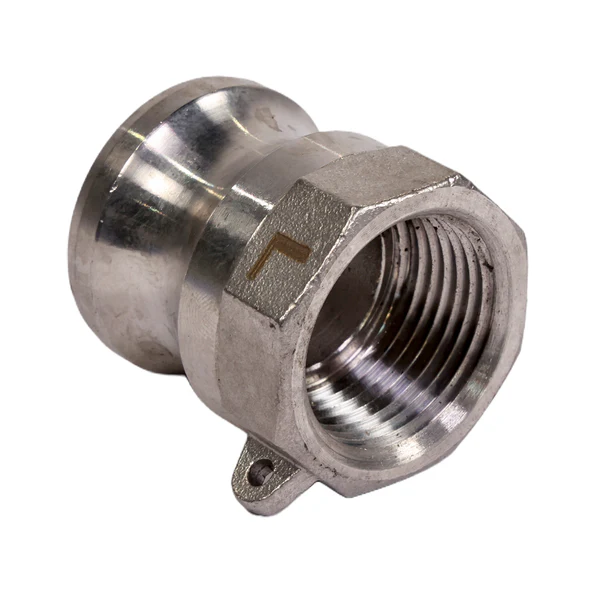

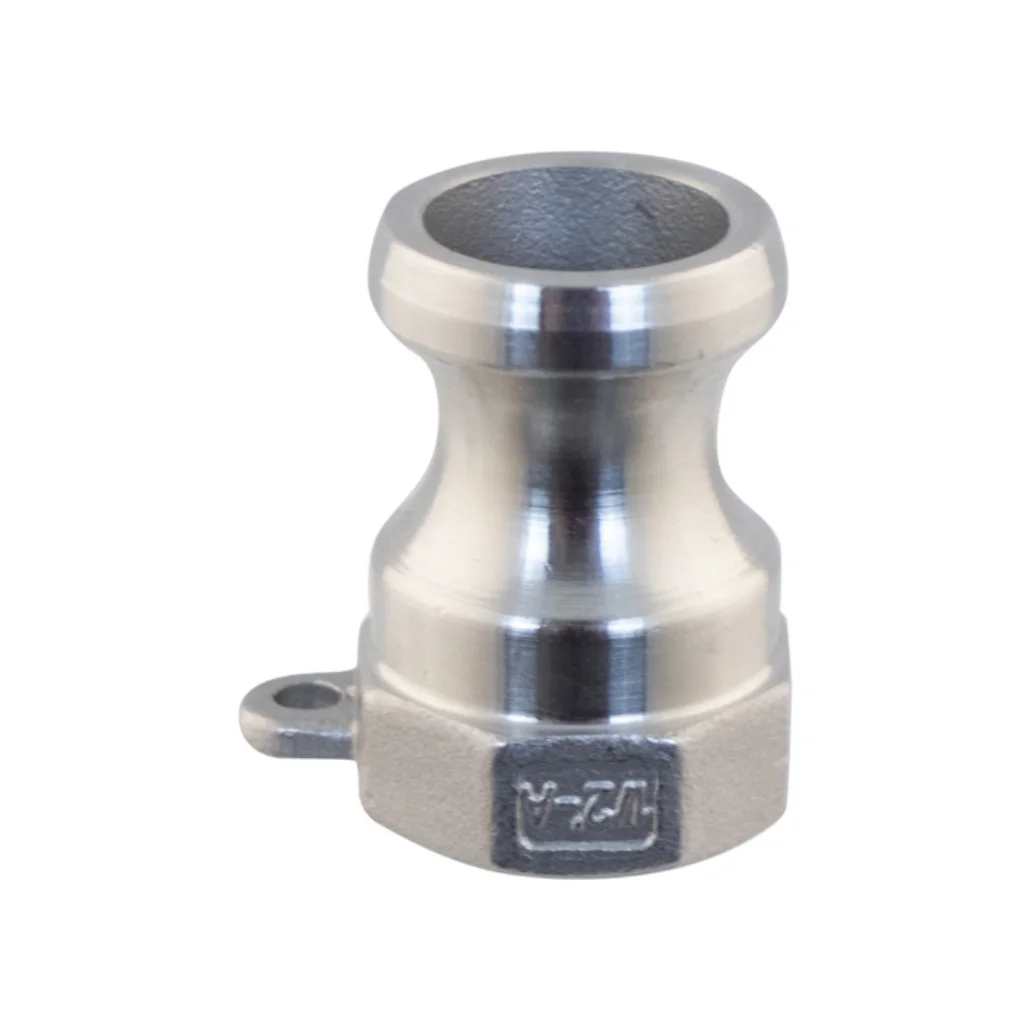

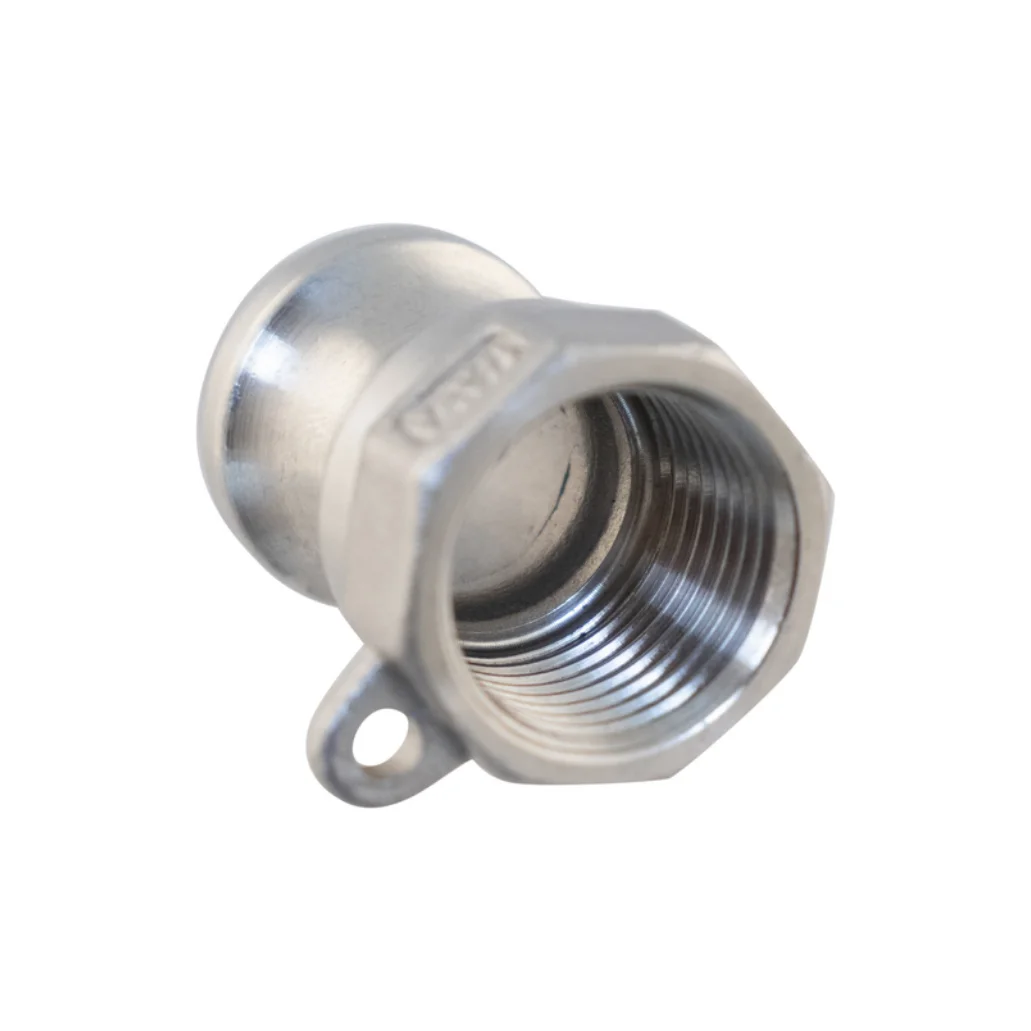

Camlock (Type A) 1/2″ Male x FPT SS

Description:

• 1/2″ Male Cam and Groove Adapter x 1/2″ Female NPT Thread. (Stainless Steel 304)
• Working Pressure: 150 PSI

Uses:

• Used to install a 1/2″ Male Camlock Adapter onto a 1/2″ Female Thread.
• Used to connect with a 1/2″ Female Coupler.

Compatibility:

• The camlock portion will connect to a 1/2″ Female Coupler.
• The threaded portion will connect to a 1/2″ Male NPT Thread.

Installation:

• Thread the Female NPT portion of the adapter onto a 1/2″ Male NPT Threaded end.
• Then insert the 1/2″ Type A Male Adapter into a 1/2″ Female Cam Fitting and close the two cam arms.
